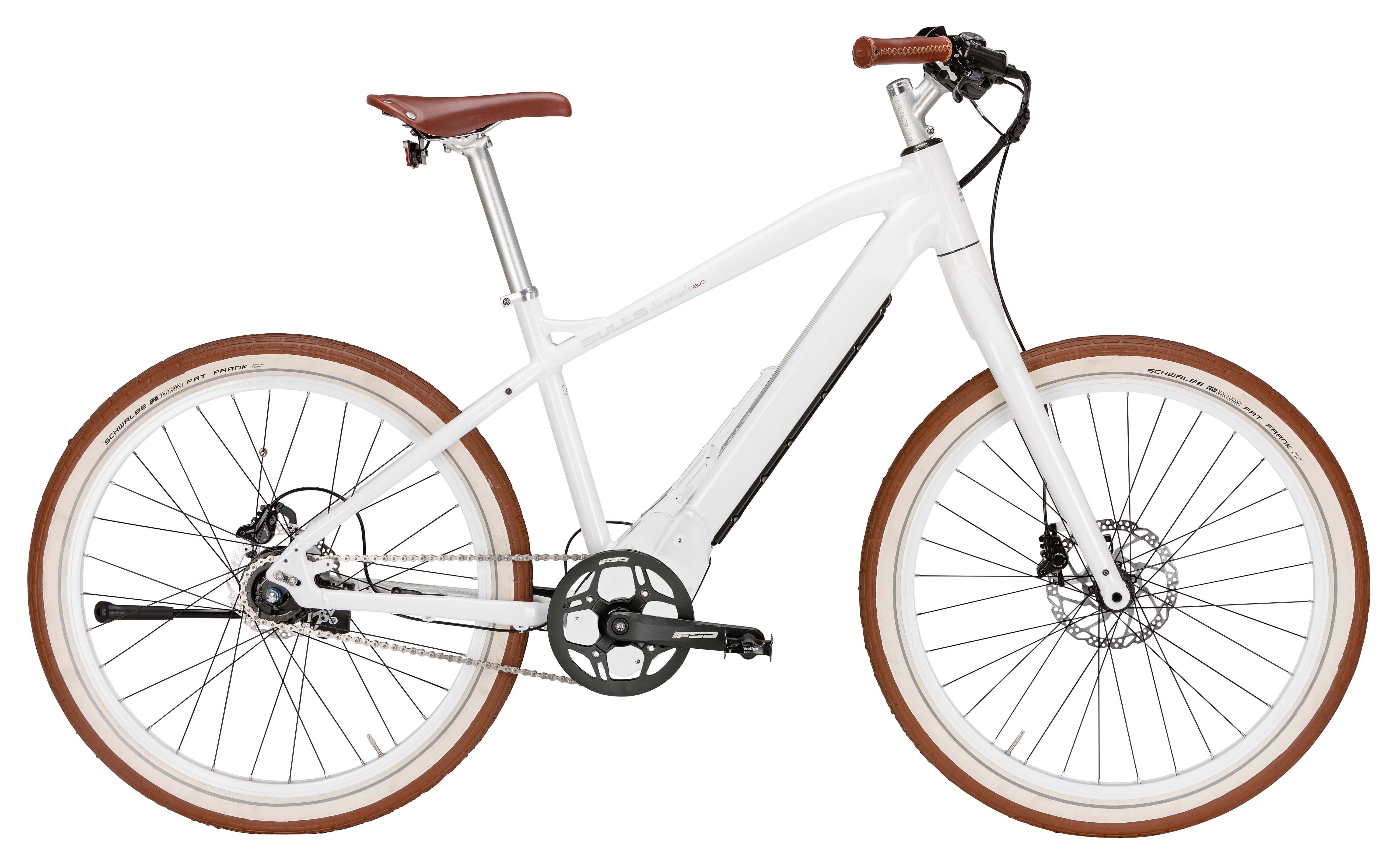

STURMVOGEL E EVO

DESCRIPTION

A Classic Bike, With an Electric Twist
The Sturmvogel has very impressive stats when taken a close look at. This fully rigid eBike has a charge time that goes from 0-100% in approximately 5 hours. It’s an aluminum hybrid is that’s ideal for anyone trying to make their commute faster or just relax and enjoy recreational riding.

The drive unit behind the Sturmvogel E EVO is a 37V, 650 watt-hour battery in conjunction with Brose’s 350W motor. The range of performance it offers is more than 115 miles on one charge, depending on riding style, load and terrain.

This multi-function hybrid offers an internal 8-speed hub from Shimano Alfine, keeping maintenance low and giving a clean look. Shimano hydraulic disc brakes are equipped to ensure a responsive braking when needed, as the bike can assist you reach fast speeds quickly.

With one of the highest-performing rechargeable batteries on the market, the battery is perfectly integrated into the frame yet easy to remove for external charging. The motor is a mid-engine design, so it is concealed in the bottom bracket shell for an ideal center of gravity. The Sturmvogel is the ultimate eBike with 3 modes ranging from Eco, Tour and Sport to accommodate any riding style choose to pedal.
Check out a Sturmvogel E EVO at a dealer near you!



Submit your review
1
2
3
4
5
Submit

Cancel

Create your own review

Average rating:
 1 reviews
by Electric Bike Review on Blank Product Name
EBR - Sturmvogel E EVO

"A beautifully designed urban electric bike painted white for visibility and modern appeal, powerful Brose motor and extra-large BMZ battery (650w) both positioned low and center for balance."

SPECIFICATIONS

Frame
7005 Aluminum
Frame Size
41/46/51/56cm
Fork
Aluminum fork
Drive Train
Brose 250W
Rear Derailleur
Shimano Alfine SG-S7000-8
Shifters
Shimano Alfine SL-S7000-8
Crankset
FSA, 44T
Chain
KMC Z610HX
Cassette
Shimano Alfine SM-S7000-8 22T
Brakes
Shimano BR-M447, hydraulic disc 180/160mm
Handlebar
FSA Metropolis
Stem
FSA Metropolis
Seat Post
Kalloy SP-719
Saddle
Velo
Hubs
Formula/Shimano Alfine SG-S7000-8
Rims
STYX BF-1
Wheel Size
26
Tires
Schwalbe Fat Frank, 26×2.35
Pedals
Wellgo
Weight
52.6 lbs (approx.)
Powerpack
37V/17.5Ah/650Wh
Modes
Eco, Tour, Sport
Charging Time
approx. 3.4hrs to 80%, approx. 4.5hrs to 100%
Battery Range
137 miles (single charge at the optimal condition)
Max. Speed
20mph

Specifications subject to change without notice.

technology-image Quiet 250W motor with 90Nm of torque is claimed the most advanced ebike system in the world.
technology-image The battery can be removed and charged externally or installed in the bike.
technology-image The premium hub gear of Shimano Alfine shines with the best transmission and minimum maintenance. Completely encapsulated, the gear is secured perfectly against any outer environment and offers the perfect switching range at 8-speed.
technology-image Perfectly integrated into the frame and easy to remove for external charging, it is currently the highest performing rechargeable battery in the market with 650w/37V/17Ah.
technology-image This is semi-integrated headset with an inner diameter of 1 1/8" at the top and 1.5" at the bottom. This ensures best riding stability and excellent control head stiffness. The biggest shaft results in stiffer fork and frame as riding forces are spread more evenly thanks to a thicker head tube.
technology-image The main advantages of the thru-axle system are stiffness and strength, which add together to a safer bike. It has a clear advantage on disc brakes over the traditional quick release as it allows for easier and more precise wheel mount/dismount operation.
technology-image At 148mm, the hubs of the boost standard are wider than any conventional ones. Connected to the flatted spoke screen, they increase stiffness and stability of the wheel for even better handling.
technology-image Internally routed shifting and braking cables ensure a clean and elegant look while ensuring a better protection to all important cables.
